Sonus faber Palladio PL-563
Sonus faber Palladio PL-563
Contemporary look for Custom Installation speakers.
— Product Description
A full line of Custom installation speakers in-wall and in-ceiling that inherits design and technical solutions from the entry level collection of Sonus faber, the Sonetto collection. Discreet and effective solution for any listening environment.
PALLADIO: THE NEW CUSTOM INSTALLATION
Developed as a solution to the lack of high-quality craftsmanship and warmth of sound in modern architectural speakers, the new Palladio collection works to expand the spaces of the listening experience, beyond the boundaries of traditional listening rooms. Palladio custom installation speakers guarantees a total sound immersion with versatile models, also aesthetically pleasing in design.
THE VOICE OF SONUS FABER
It's timbre of our loudspeakers systems, especially in the mid-high frequencies section: a warm and fascinating sound obtained by means of design solution that identify the DNA of the brand. As for our line of passive loudspeakers, the 29 mm silk dome tweeters are characterized by DAD (Damped Apex Dome™) technology and mid-ranges and mid-woofers are equipped with custom diaphragms made in natural fiber and cellulose pulp, a special Sonus faber receipt. The crossover network or the entire line is designed for better definition and purity of sound featuring the Paracross Topology™ circuitry.
LEVEL 5 AND SONETTO: HARMONIC INTEGRATION
The characterization of Level 5 front panels is the same of the Sonetto collection. The satin aluminum trims that frame both tweeter and mid-woofer, create the “Voice of Sonus faber” aesthetic. The string pattern explicitly references the Sonetto bookshelves stand design, where the motif ideally referred to the use of the elastic strings of the first Guarneri stands (1993).
EASY TO INSTALL AND CUSTOMIZE
All Palladio series models are equipped with a magnetic, edgeless metal grille, designed to make each model as discreet as possible. All models grilles are ready to be painted and all in-ceilings models can be equipped with a square magnetic grille to further increase the freedom of listener’s choice. Thanks to the swing out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard. All Palladio In-Ceiling speakers (except for PC-664P and PC-563P) can be completed with their pre-mount kit, an optional accessory for new constructions installations.
Sonus Faber PL-563 Technical Specifications

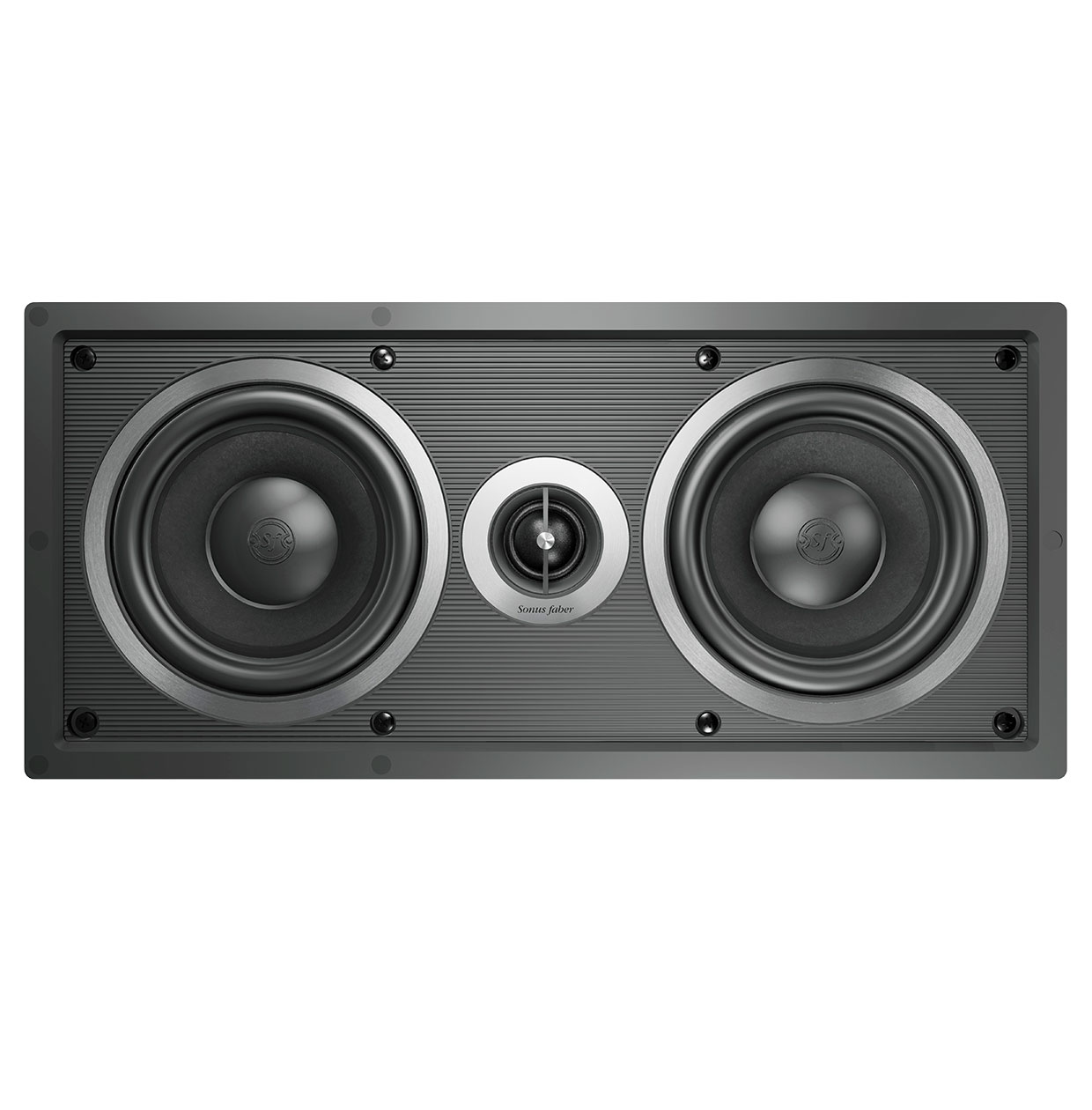

2 way left/right/center in-wall system.
Tweeter DAD™ driver: 29 mm / 1,1’’
Midwoofer: 2 x 165 mm - 2 x 6,5’’
40 – 250W
Frame outer: 471 x 216 mm - 18.5 x 8.5’’
Cut out: 448 x 192 mm - 17.6 x 7.6’’
Depth behind surface: 100 mm / 4’’
Protrusion: 13 mm / 0.51’’
