Our most powerful compact AC regenerator, the P12 regenerates new, safe, and pure AC from your home's power outlets for breathtaking improvement.
Product Description
— Product Description
Introduction
Our most powerful compact AC regenerator, the PerfectWave PowerPlant 12 (P12) takes your incoming AC power, converts it to DC, and then regenerates it into pure, sine-wave-perfect, high-current AC. In the process, problems such as low voltage, distorted waveforms, sagging power, and noise are completely eliminated. The P12 delivers dramatically improved dynamics, deeper bass, and a much wider, more open soundstage than any passive power conditioner, all while providing extraordinary protection for your connected equipment.
Design

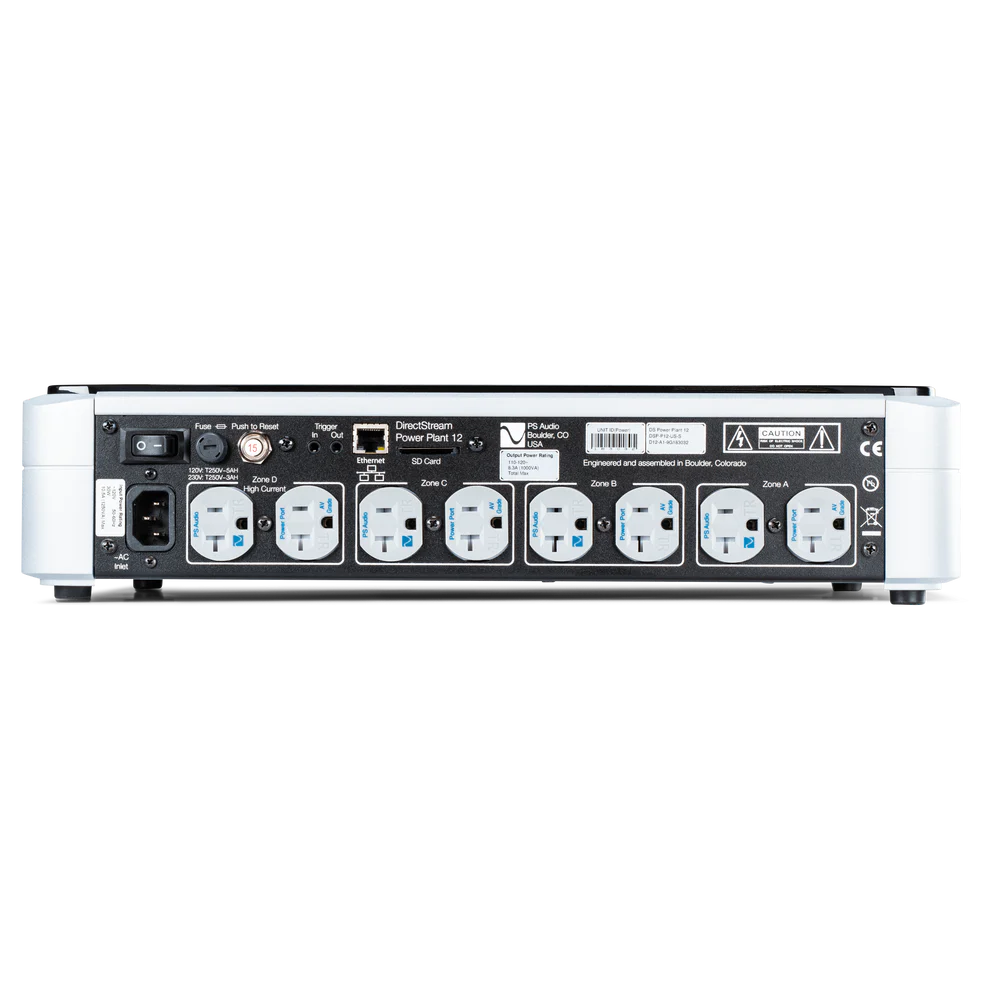

The P12 features eight outlets (US version) arranged across four separately switchable zones, each powered via thick copper busbars to ensure equal, distortion-free delivery. State-of-the-art clamping devices protect against incoming surges and spikes, and a fully regulated output safeguards against large voltage swings. With an ultra-low output impedance of 0.008 Ω, even the most power-hungry amplifiers never starve for current.
Application
By rebuilding AC power actively—using amplifier-style components similar to those in high-end audio amps—the P12 removes line anomalies and delivers rock-solid, regulated power to your system. Expect vastly improved micro- and macro-dynamics, lower background noise, and enhanced musical realism. The P12 is an essential foundation for any serious audio or video setup, ensuring years of reliable performance.
Technology Overview

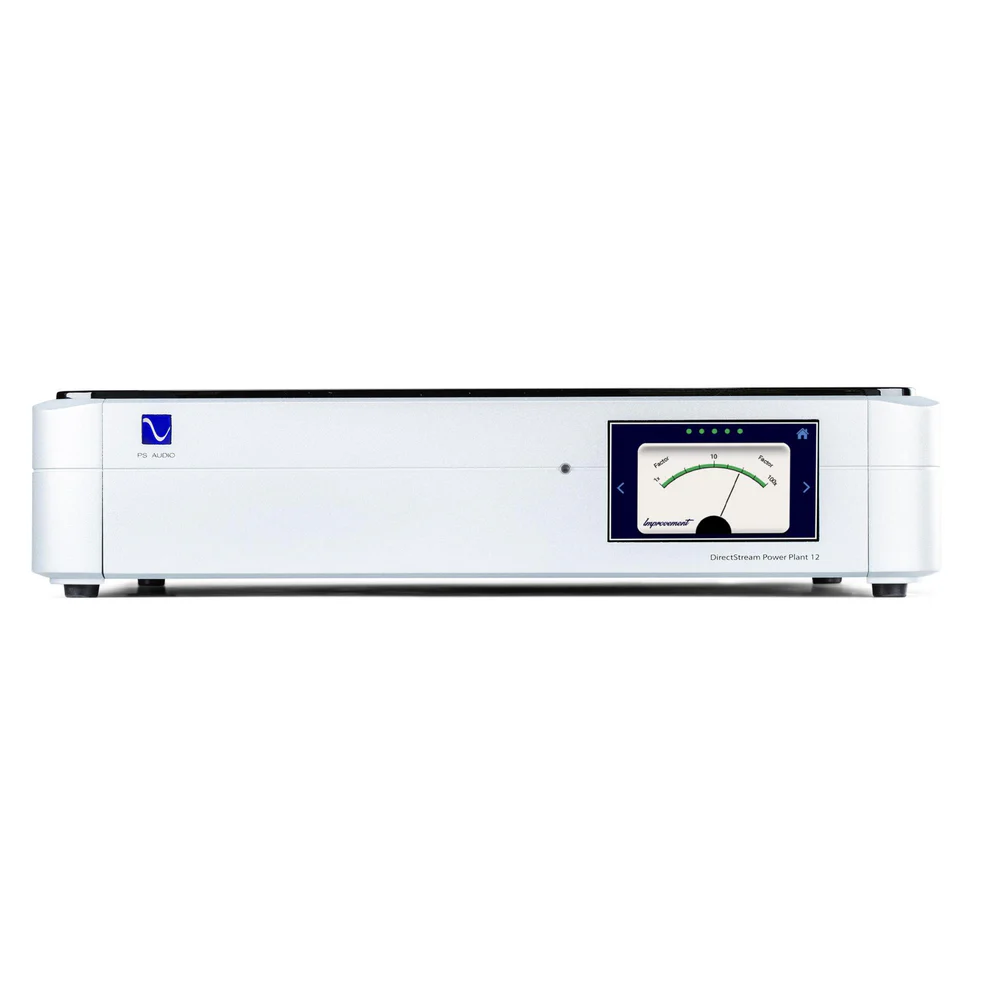

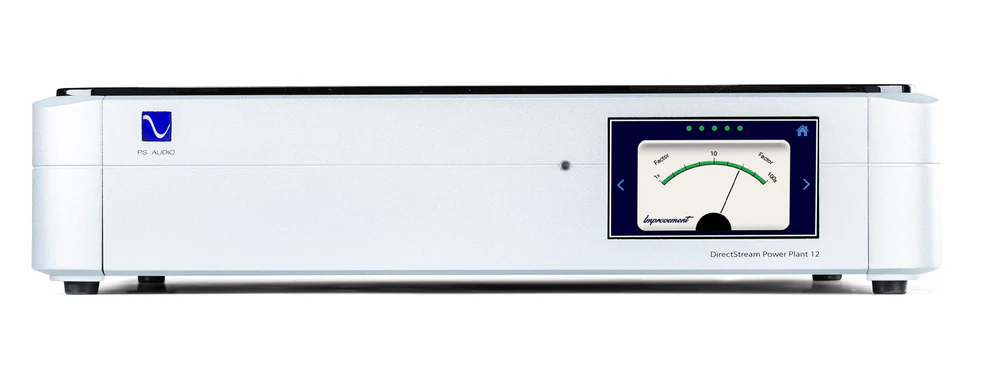

Power regeneration in the P12 uses an analog power amplifier and a pure DSD FPGA-based sine-wave generator to rebuild AC from scratch. Incoming mains are first converted to DC, then faithfully regenerated into a perfect sine wave. Low output impedance maintains dynamic control even during demanding passages, while MultiWave technology extends the sine-wave peak for greater energy storage and reduced ripple. A full-color, 4.3″ touchscreen provides real-time monitoring of incoming and outgoing distortion, THD levels, power consumption, and allows adjustment of turn-on sequencing, output voltage, and zone switching.
Key Features
- Built-in Boulder analog power amplifier
- 1,200 VA continuous output capability
- Eight outlets (US) across four independent zones
- 15 A input (95–145 VAC US; 10 A input, 200–285 VAC EU/AU/UK)
- 100% regenerated pure sine-wave AC
- Ultra-low output impedance (0.008 Ω)—over 50× lower than passive conditioners
- MultiWave & CleanWave power-regeneration modes
- Integrated oscilloscope, THD meter, improvement meter, and power meter
- LAN control & full-color touchscreen interface
- Adjustable output voltage & programmable turn-on/off sequences
- Field-upgradeable electronics
- Compact, passively cooled chassis
Specifications
Environment Specifications
US/Japan
• Location: Indoor use only
• Duty Cycle: Continuous operation
• Moisture Sensitivity: Not sealed against moisture
• Operating Humidity: < 80 % RH
• Operating Temperature: 0 °C to 40 °C
• Storage Temperature: – 40 °C to + 40 °C
• Max Operating Altitude: 12,000 ft (3,500 m)
• Electrical Supply: 120 V 15 A 60 Hz (US); 100 V 15 A 50/60 Hz (JP)
Europe/Asia
• Location: Indoor use only
• Duty Cycle: Continuous operation
• Moisture Sensitivity: Not sealed against moisture
• Operating Humidity: < 80 % RH
• Operating Temperature: 0 °C to 40 °C
• Storage Temperature: – 40 °C to + 40 °C
• Max Operating Altitude: 12,000 ft (3,500 m)
• Electrical Supply: 230 V 10 A 50/60 Hz
Instrument Specifications
• Unit Dimensions: 17″ W × 14″ D × 4″ H (43 cm × 36 cm × 10.2 cm)
• Unit Weight: 37 lbs (16.7 kg)
• Shipping Dimensions: 24″ W × 21″ D × 10″ H (61 cm × 53 cm × 25 cm)
• Shipping Weight: 48 lbs (21.7 kg)
• Nominal Input Voltage: 95–145 VAC (US/JP); 200–285 VAC (EU/Asia)
• Maximum Continuous Load: 1,000 VA (US/JP); 1,200 VA (EU/Asia)
• Maximum Peak Load (30 s): 3,600 VA (US/JP); 3,800 VA (EU/Asia)
• Voltage Regulation: ± 0.5 V (US/JP); ± 1 V (EU/Asia)
• Output Distortion (Resistive Load): < 0.5 % (US/JP); < 0.9 % (EU/Asia)
• Output Distortion (Reactive Load): < 0.5 % typical (US/JP); < 0.9 % typical (EU/Asia)
• Output Impedance: < 0.008 Ω
• Noise Reduction (100 kHz–2 MHz): > 80 dB
• Efficiency @ Rated Load: > 85 %
• Input Frequency: 45–65 Hz
• Under-Voltage Limit: US 90 VAC; JP 75 VAC; EU/Asia 174 VAC
• Over-Voltage Limit: US 144 VAC; JP 120 VAC; EU/Asia 275 VAC
• Energy Dissipation (clamp): 1,020 J (US/JP); 1,270 J (EU/Asia)
• Peak Current Surge: 90,000 A
• Max Surge Voltage: 6,000 V
• Clamp Level: 340 V (US/JP); 800 V (EU/Asia)
• DC Trigger Configuration: Tip-positive, 5–15 V DC
• Standby Power Consumption: 35 W (US/JP); 30 W (EU/Asia)
