The perfect size loudspeaker for any room
Product Description
— Product Description
Introduction

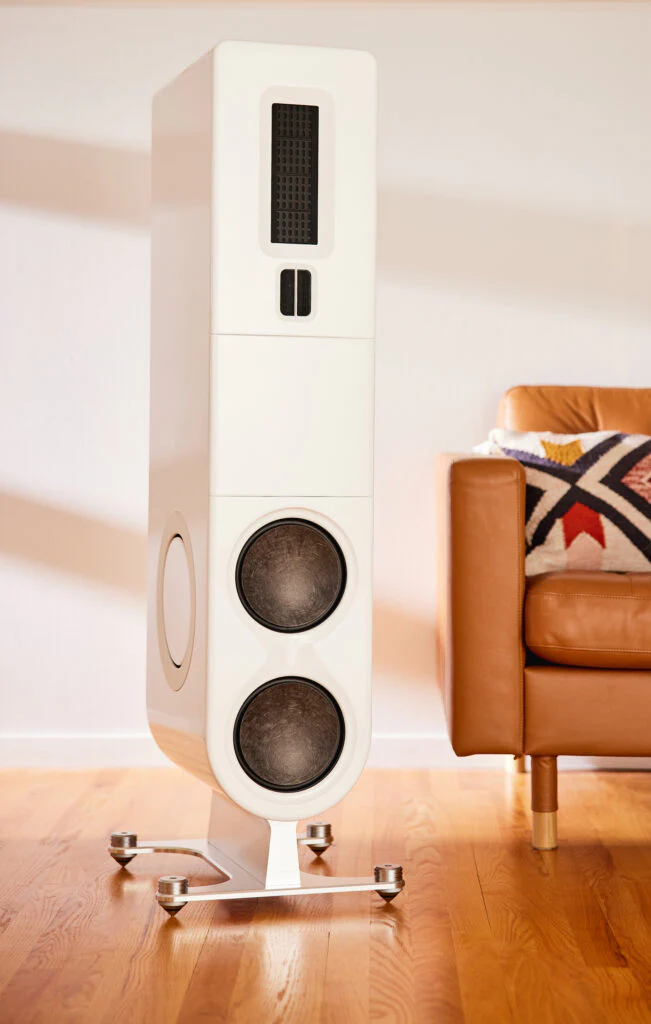

The Aspen FR20 brings flagship-level performance into small and medium-sized listening spaces. Sharing the same planar ribbon clarity and ultra-linear woofer technologies as its larger siblings, the FR20 delivers full-range response down to 28 Hz, exceptional transparency, and effortlessly detailed sound—in a package that’s surprisingly room-friendly and budget-conscious.
Design
Drawing on nearly 50 years of loudspeaker expertise, the FR20 features:
- Planar Ribbon Drivers: A matched pair of tweeter and midrange ribbons driven by symmetrical neodymium magnets for zero breakup, hysteresis, or inductive distortion.
- Long-Throw Woofers: Two 6.5″, high-excursion cone drivers with split magnetic gaps for tight, authoritative bass.
- Passive Radiators: Two rear-mounted, high-compliance radiators extend deep bass without port noise or compression.
- Phase-Correct Crossover: A carefully tuned network ensures seamless integration of ribbons, woofers, and radiators, preserving timing and coherence.
- Neutral Cabinet: A rigid, internally braced enclosure keeps coloration to zero, letting the music stand alone.
Application
Ideal for desktop systems, small living rooms, or as front/rear channels in multi-channel setups, the FR20’s boundary-tolerant design and included setup guide make placement and tuning straightforward. Just pair with any quality amplifier, follow the step-by-step instructions, and experience reference-grade dynamics and imaging with minimal fuss.
Technology Overview
- Planar Magnetics
Ultra-light diaphragms coupled to push-pull neodymium motors deliver crystalline highs and midrange without distortion. - High-Excursion Woofers
Split-gap cones driven by powerful magnet assemblies achieve bass extension to 28 Hz with precision and punch. - Passive Radiator Bass
Rear-mounted radiators absorb and re-emit low frequencies, extending bass response while avoiding port artifacts. - Cabinet and Crossover
Studio-grade bracing and a phase-correct crossover maintain perfect driver alignment and a flat impedance curve for easy amplifier driving.
Key Features
- Full-range response: 28 Hz – >20 kHz
- Dual planar ribbon drivers (tweeter & midrange)
- Two 6.5″ long-throw woofers per speaker
- Two high-compliance passive radiators per speaker
- Phase-correct, no-feedback crossover network
- Boundary-tolerant, acoustically neutral cabinet
- Available in Pearl White or Sable Black finishes
Specifications
Color Options
Pearl White; Sable Black
Enclosure Type
Two-piece design – sealed upper mid-tweeter module; passive-radiator lower cabinet with four 10″ side-firing radiators
Transducers & Crossover
- High-Frequency: 2 × 2.5″ planar-magnetic drivers with Teonex diaphragms
- Mid-Frequency: 10″ planar-magnetic driver with Teonex diaphragm
- Low-Frequency: 4 × 8″ cast-frame aluminum-cone woofers with 12 lb magnet structures
- Crossover Frequencies: 400 Hz & 2,500 Hz (Linkwitz-Riley 4th-order acoustic)
Performance Specifications
- Sensitivity (2.83 V @ 1 m): 88 dB
- Nominal Impedance: 4 Ω (3.6 Ω minimum)
- Recommended Amplifier Power: 100 W–600 W
- Frequency Response:
- 23 Hz–20 kHz (–6 dB, half-space)
- 20 Hz (–6 dB, in-room)
Dimensions & Weight
- Overall Height (with base): 60.5″
- Width (with base): 16″ (cabinet alone 10″)
- Depth (with base): 25.75″
- Net Weight (each): 230 lbs (104.5 kg)
