Product Description
— Product Description
Introduction
The PS-1250 is Accuphase’s high-performance clean power conditioner, engineered to regenerate pure, sine-wave AC for your audio system. By comparing incoming mains against a precise reference waveform and actively correcting imperfections, it removes distortion and noise—delivering rock-steady power that elevates dynamics, clarity, and bass authority.
Design

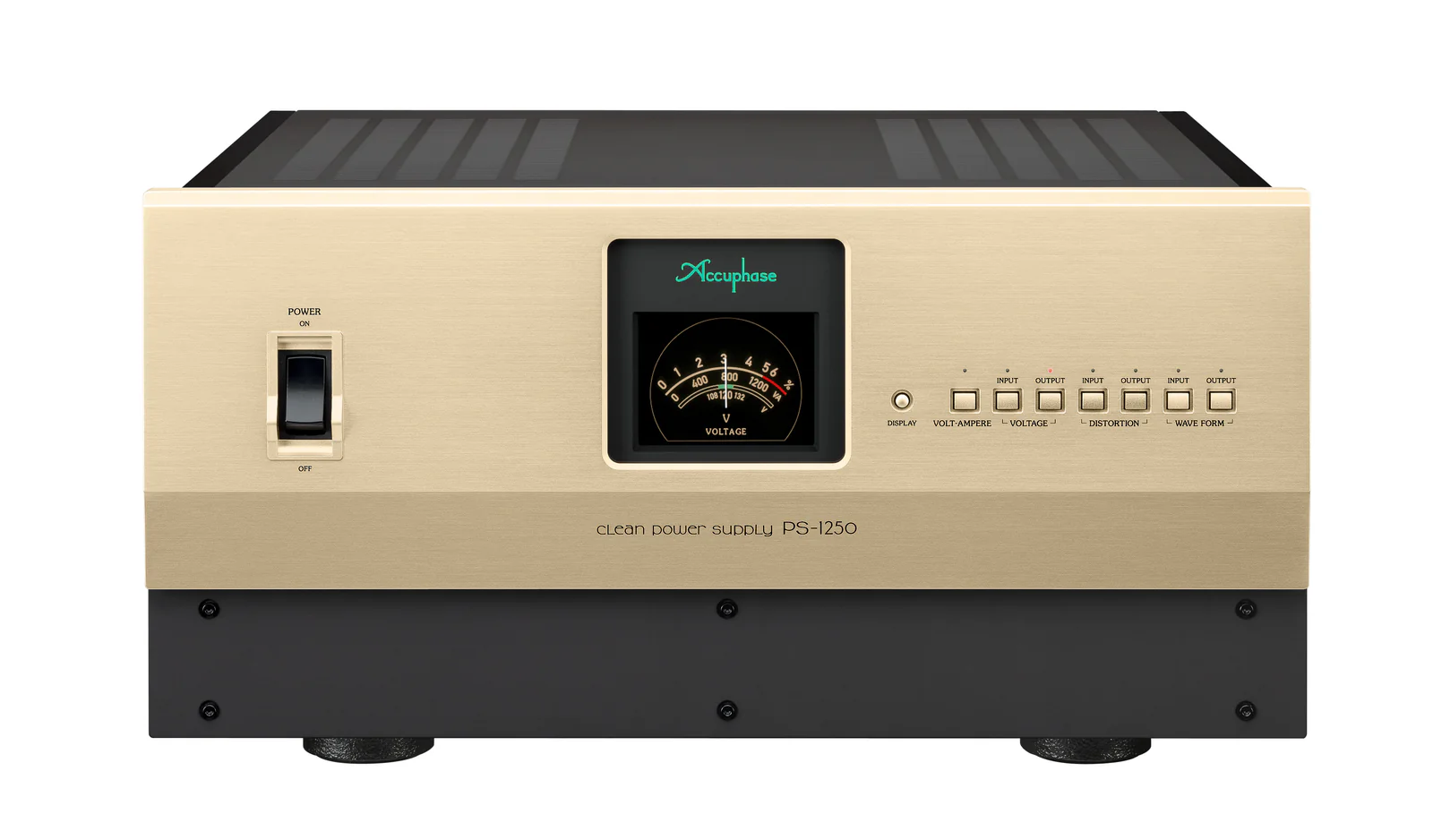

Housed in a rigid, low-resonance chassis, the PS-1250 combines a shielded toroidal power transformer with massive filtering capacitors and a waveform-correction amplifier. Its front-panel display provides live meters for output VA, voltage, distortion, and waveform, while multiple, independently protected outlets accommodate any system configuration.
Application
Install the PS-1250 between your wall outlet and audio components to eliminate common mains issues—voltage sag, harmonic distortion, and digital hash. Ideal for powering amplifiers, preamps, streamers, and digital sources, it ensures every component receives a pristine AC supply, unlocking hidden detail and improving system reliability.
Technology Overview
- Waveform Shaping: A reference-signal generator creates an ideal sine wave. The PS-1250 compares incoming AC to that reference and injects compensation currents to correct distortion and suppress harmonics by over 40 dB.
- Three-Stage Noise Elimination: Line filtering removes high-frequency interference; a shielded toroidal transformer blocks common-mode noise; and the waveform-correction amp delivers a distortion-free output.
- Real-Time Monitoring: Onboard meters display VA load, input/output voltage, THD percentage, and live waveform overlays—letting you optimize component connections and avoid overload.
Key Features
- Continuous output capacity: 900 VA
- Output voltage regulation: ±1.5 V (120 V models), ±3 V (230 V models)
- Total harmonic distortion shaping: ≤ 0.08%
- Front-panel meters for VA, voltage, distortion, and waveform
- Eight AC outlets on four switchable zones
- High-efficiency shielded toroidal power transformer
- Massive 48,000 µF filtering capacitors
- High-sensitivity protection circuitry with overload/thermal shutdown
- Natural convection cooling; no fans
- Elegant champagne-finish front panel with gloss aluminum side plates
Specifications
Mechanical Specifications
- Dimensions (W × H × D): 465 × 243 × 499 mm (18.3″ × 9.6″ × 19.6″)
- Net Weight: 42.1 kg (92.8 lbs) for 120 V version; 41.3 kg (91.1 lbs) for 230 V version accuphase.com
Power & Electrical Specifications
- Rated Input Voltage:
- 120 V ± 10% (50/60 Hz)
- 230 V ± 10% (50/60 Hz)
- No-Load Power Consumption: 37 W (120 V); 55 W (230 V)
- Cooling Principle: Natural air cooling accuphase.com
Performance Specifications
- Rated Output Capacity: 900 VA (continuous)
- Rated Output Voltage: 120 V ± 1.5 V or 230 V ± 3.0 V
- Rated Output Current: 7.5 A (120 V); 3.9 A (230 V)
- Output Frequency: 50 Hz or 60 Hz (matches input)
- Output Waveform THD: ≤ 0.08%
- V–A Meter Range: 0–1,200 VA accuphase.com
Display & Monitoring Features
- Front-Panel Display Modes:
- Output power (VA)
- Input/output voltage (V)
- Input/output distortion (%)
- Input/output waveform visualization accuphase.com
Output & Protection
- Multiple Output Terminals to feed several components
- High-Sensitivity Protection Circuitry against overload and faults accuphase.com
Additional Features
- Massive Toroidal Transformer and large filter capacitors for clean, stable power
- Waveform Shaping Technology actively corrects and supplements AC waveform to minimize distortion
