DG-68 Digital Voicing Equalizer

In store purchase only
SKU:
$ 18,975.00 USD
$ 18,975.00 USD
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Awards
No items found.

Product Description

— Product Description

Introduction

Building on a legacy that began with the groundbreaking DG-28 in 1997, the DG-68 refines the art of room tuning and tonal shaping with fully digital precision. This fifth-generation Voicing Equalizer lets you tailor the acoustic environment and frequency response of your system to perfection, unlocking previously hidden musical detail and realism.

Design

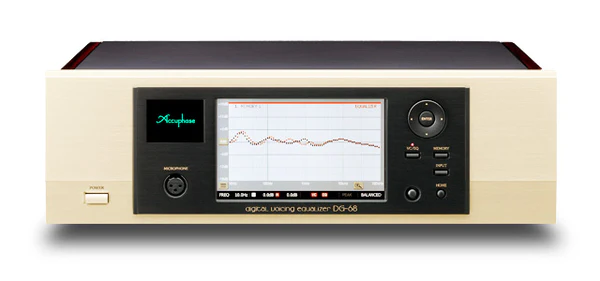

At its core is a high-definition color IPS LCD touchscreen, paired with a stylus pen for intuitive “draw your own curve” control. A robust aluminum chassis with hairline‐finished top plate and elegant wooden side panels houses both the electronics and a precision sound-field measurement microphone. All critical circuitry—from A/D conversion to DSP to D/A conversion—uses high-accuracy, 40-bit floating-point processing to ensure transparency and ultra-low noise.

Application

Install the DG-68 between your preamplifier (or integrated amp) and power amplifiers to perform room-specific voicing compensation, graphic equalization, or real-time spectrum analysis. Save multiple voicing or EQ presets—and even on-screen screenshots—to a USB flash drive for quick recall. Whether you’re correcting low-frequency room modes or fine-tuning midrange warmth, the DG-68 gives you surgical control over every aspect of your system’s tonal balance.

Technology Overview

  • Voicing Compensation
    Uses an internal warble-tone generator and included measurement mic to capture room anomalies, then applies up to 80 bands of correction (20 Hz–100 kHz) with “Smooth Voicing” to prevent over-correction at speaker limits.
  • Graphic Equalizer
    Offers manual, band-by-band adjustment across the same 80-band range, drawn directly on the display or stepped via front-panel controls.
  • Spectrum Analyzer
    Displays real-time 35-band analysis (up to 50 kHz) of incoming music, helping you identify frequencies that need correction or enhancement.

Key Features

  • Fully digital 40-bit floating-point DSP engine
  • Separate Voicing, Equalizer, and Analyzer modes
  • “Smooth Voicing” automatic compensation for natural bass behavior
  • High-resolution IPS LCD with stylus input
  • Freely programmable 30-pattern memory
  • Save/recall settings and screen captures via USB flash drive
  • Analog inputs/outputs (balanced XLR & unbalanced RCA)
  • Digital inputs/outputs including HS-LINK and S/PDIF
  • Included RC-330 remote control for key functions

Specifications

Mechanical Specifications

  • Chassis Dimensions (W × H × D): 477 × 156 × 394 mm (18.8″ × 6.1″ × 15.5″)
  • Net Weight: 29.8 kg (65.7 lbs)
  • Shipping Weight: 37 kg (82 lbs)

Power & Electrical

  • AC Input (factory-set): 120 V/220 V/230 V AC, 50/60 Hz
  • Power Consumption: 36 W

Core Signal Processing

  • DSP Chip: 40-bit floating-point Analog Devices ADSP-21489
  • A → D Conversion: Four-parallel 32-bit AKM AK5578EN
  • D → A Conversion: Eight-parallel 32-bit ESS ES9028PRO with Accuphase Noise & Distortion Cancelling Circuitry (ANCC)
  • Digital Filter: Dual Direct Balanced Filter (separate analog low-pass paths for balanced and line outputs)

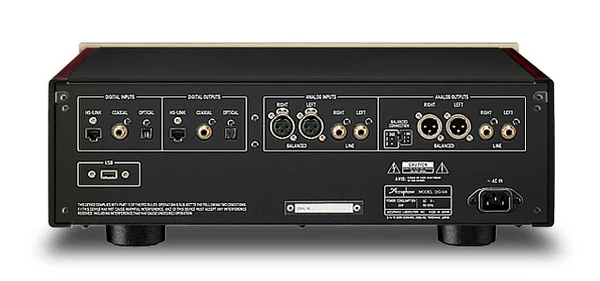

Analog Inputs & Outputs

  • Analog Inputs:
    • Balanced XLR
    • Unbalanced RCA (LINE)
  • Analog Outputs:
    • Balanced XLR (2.5 V RMS, 50 Ω)
    • Unbalanced RCA (2.5 V RMS, 50 Ω)
  • Subsonic Filter: 17 Hz, –6 dB/octave

Digital Inputs

  • HS-LINK Ver. 1: DSD 2.8 MHz; PCM 32–192 kHz (16–24 bit)
  • HS-LINK Ver. 2: DSD 2.8/5.6 MHz; PCM 32–384 kHz (16–32 bit)
  • AES3 (Balanced): PCM up to 192 kHz (16–24 bit)
  • Coaxial S/PDIF: PCM up to 192 kHz (16–24 bit)
  • Optical TOSLink: PCM up to 96 kHz (16–24 bit)
  • USB-B (Asynchronous): DSD up to 11.2896 MHz (ASIO); PCM up to 384 kHz (16–32 bit)

Digital Outputs

  • Coaxial S/PDIF
  • Optical TOSLink
  • HS-LINK Ver. 1/Ver. 2

Performance Specifications

  • Frequency Response: 0.5 Hz–50 kHz (+0/–3 dB)
  • THD + N (20 Hz–20 kHz): 0.0007 % (analog I/O)
  • Signal-to-Noise Ratio: 123 dB
  • Dynamic Range: 121 dB
  • Channel Separation: 120 dB (1 kHz)

User Interface & Controls

  • High-resolution IPS LCD with stylus-pen input
  • Four main function buttons (Voicing, Equalizer, Analyzer, Memory)
  • Cursor keys, rotary encoder, and direct-access buttons
  • Front-panel display of sampling frequency and bit depth
  • Independent output-level adjustment and phase selector for balanced outputs

Memory & Presets

  • 30 fully programmable memory slots with editable names
  • USB flash-drive backup and recall of settings and screen captures

Included Accessories

  • Remote commander (RC-330)
  • Sound-field measurement microphone (AM-68)
  • Stylus pen
  • AC power cord
