Introduction
Marking Accuphase’s 50th anniversary of innovation, the DC-1000 is a flagship digital processor engineered to set new standards in sonic purity and emotional impact. At its heart lies the ES9038PRO ESS-based MDSD/MDS++ converter, driving eight channels in parallel to deliver nearly three times the performance of conventional single-channel DACs.
Design
Housed in a handcrafted cabinet with natural wood side panels and a milled-aluminum base plate, the DC-1000 combines luxurious aesthetics with exceptional vibration control. High-carbon cast-iron insulators further isolate the chassis, while premium ASL-10B internal cabling and glass-cloth fluorocarbon PCB substrates ensure the lowest possible dielectric losses throughout the signal path.
Application
As the centerpiece of a high-end digital front end, the DC-1000 accepts signals from a wide array of sources—computers, streamers, transports—and provides pristine data to downstream DACs or digital recorders. Programmable display of sampling frequency and bit depth keeps you informed of incoming formats, while output-level adjustment and phase inversion let you tailor its behavior to any system.
Technology Overview
- Precision MDSD/MDS++ Conversion
Eight parallel delta-sigma modulators combine DSD-rate signals into a linear-phase moving-average filter, removing ultrasonic noise without PCM conversion. - Dual Direct Balanced Filter
Completely separate line-level and balanced digital paths maintain isolation and prevent crosstalk. - Low-Noise Power Architecture
Independent toroidal transformers and dedicated regulator circuits for analog and digital sections eliminate mutual interference. - Galvanic Isolation & Reclocker
Deep-buffered reclocking and isolated I/O prevent ground-loop and jitter artifacts.
Key Features
- ES9038PRO MDSD (DSD) & MDS++ (PCM) converter driving 8 parallel channels
- Dual Direct Balanced digital filters with separate line and balanced paths
- Multiple isolated toroidal transformers and low-noise power supplies
- Display of sampling frequency and quantization bits
- Output-level adjustment for compatibility with various downstream devices
- Digital interface for Accuphase Voicing Equalizer integration
- Natural wood side panels with mirror finish and machined aluminum chassis
- High-carbon cast iron isolators and ASL-10B internal cabling
Specifications
Mechanical Specifications
Unit Dimensions (W × H × D): 477 mm × 156 mm × 394 mm (18.8″ × 6.1″ × 15.5″)
Net Weight: 29.8 kg (65.7 lbs)
Shipping Weight: 37 kg (82 lbs)
Power & Electrical
Power Requirements: 120 V / 220 V / 230 V AC, 50 Hz / 60 Hz (factory-set)
Power Consumption: 36 W
D/A Converter & Digital Filter
• ESS Technologies ES9038PRO “Hyperstream” DAC driving eight channels in parallel for both DSD (MDSD) and PCM (MDS++) signals
• Dual Direct Balanced Filter with completely separate line and balanced signal paths
Digital Inputs
• HS-LINK Ver. 1: DSD 2.8 MHz; PCM 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (16–24 bit)
• HS-LINK Ver. 2: DSD 2.8 / 5.6 MHz; PCM 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 / 352.8 / 384 kHz (16–32 bit)
• Balanced (AES-3): PCM 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (16–24 bit)
• Coaxial (S/PDIF): PCM 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (16–24 bit)
• Optical (TOSLink): PCM 32 / 44.1 / 48 / 88.2 / 96 kHz (16–24 bit)
• USB-B (Asynchronous): DSD 2.8 / 5.6 / 11.2 MHz (11.2 MHz ASIO only); PCM 44.1 / 48 / 88.2 / 96 / 176.4 / 192 / 352.8 / 384 kHz (16–32 bit)

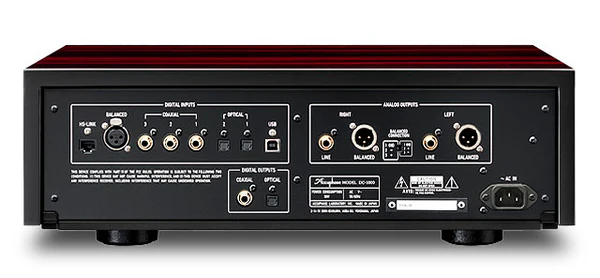

Digital Outputs & Analog Outputs
• Digital Outputs: Optical; Coaxial; HS-LINK
• Analog Outputs:
- Balanced XLR: 2.5 V RMS, 50 Ω
- Unbalanced RCA: 2.5 V RMS, 50 Ω
Performance Specifications
Frequency Response: 0.5 Hz–50 kHz (+0/–3.0 dB)
Total Harmonic Distortion + Noise: 0.0004 % (20 Hz–20 kHz)
Signal-to-Noise Ratio: 123 dB
Dynamic Range: 121 dB
Channel Separation: 120 dB (1 kHz)

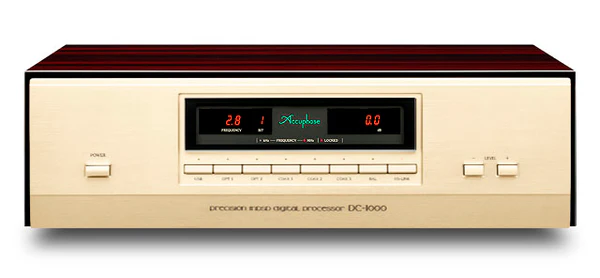

Display & Controls
• Front-panel display of sampling frequency and quantization bits
• Independent output-level adjustment by output type
• Phase selector for balanced outputs
Included Accessories
• AC power cord
• HS-LINK cable (AHDL-15)
• Remote commander (RC-140)
• Cleaning cloth
